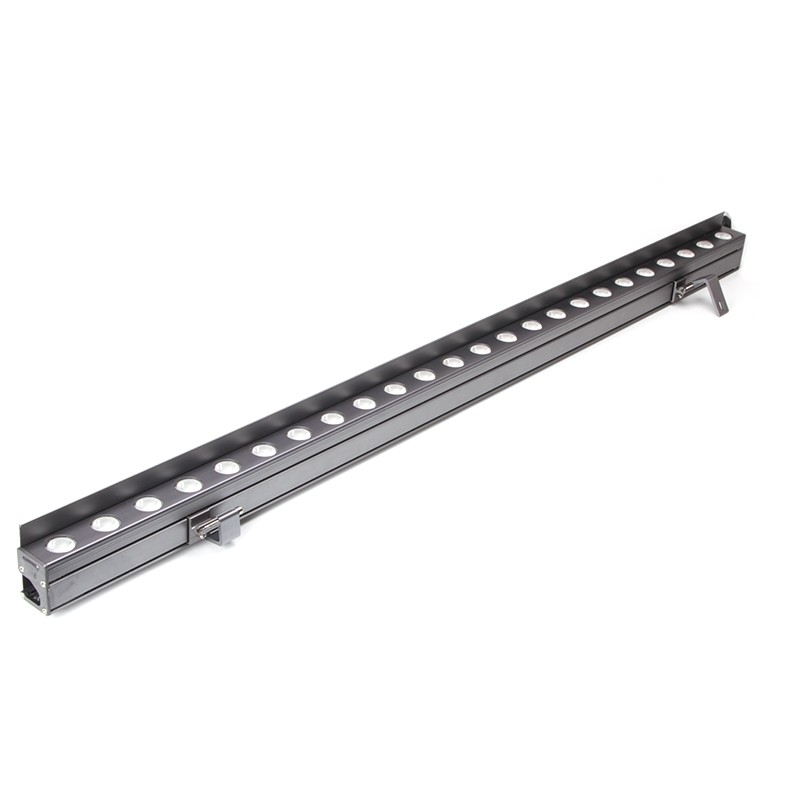

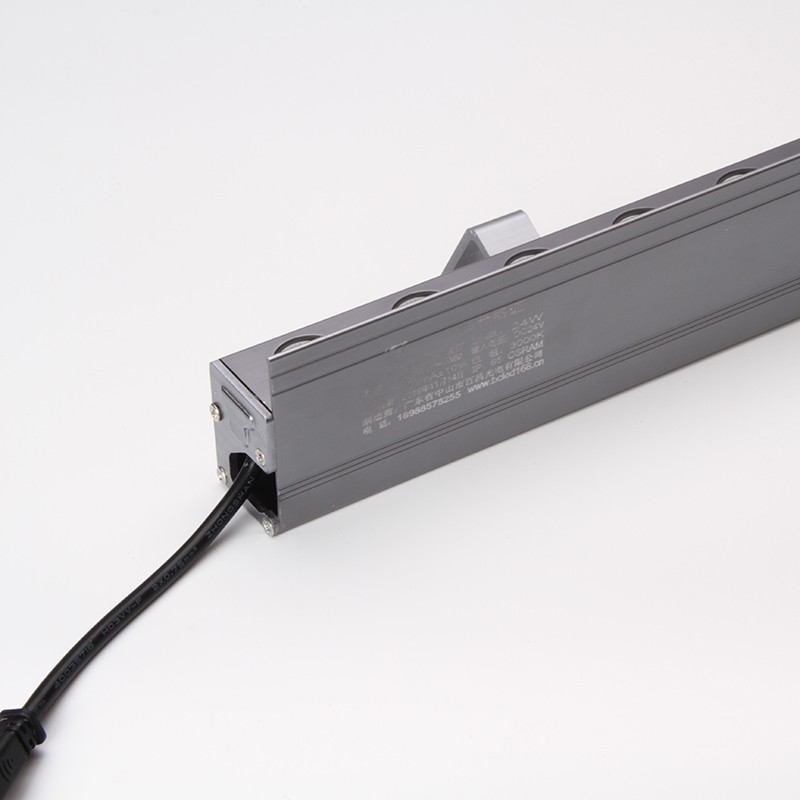

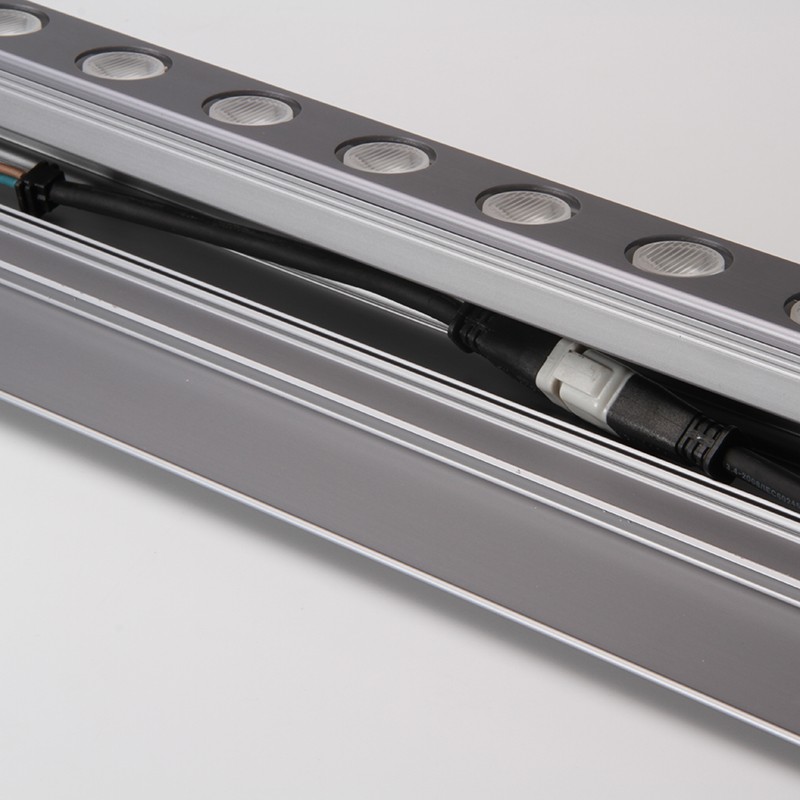

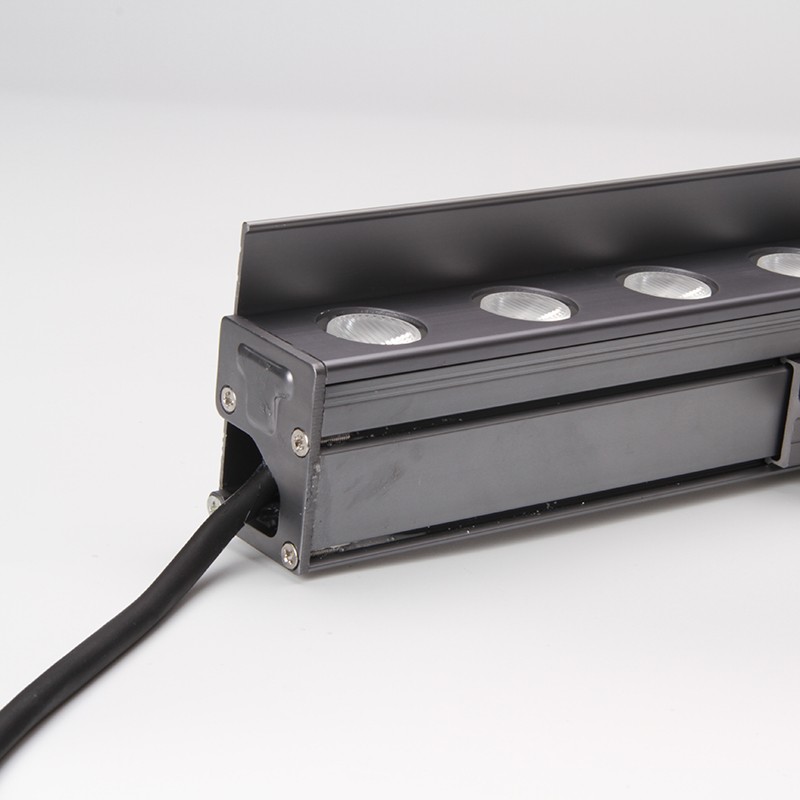

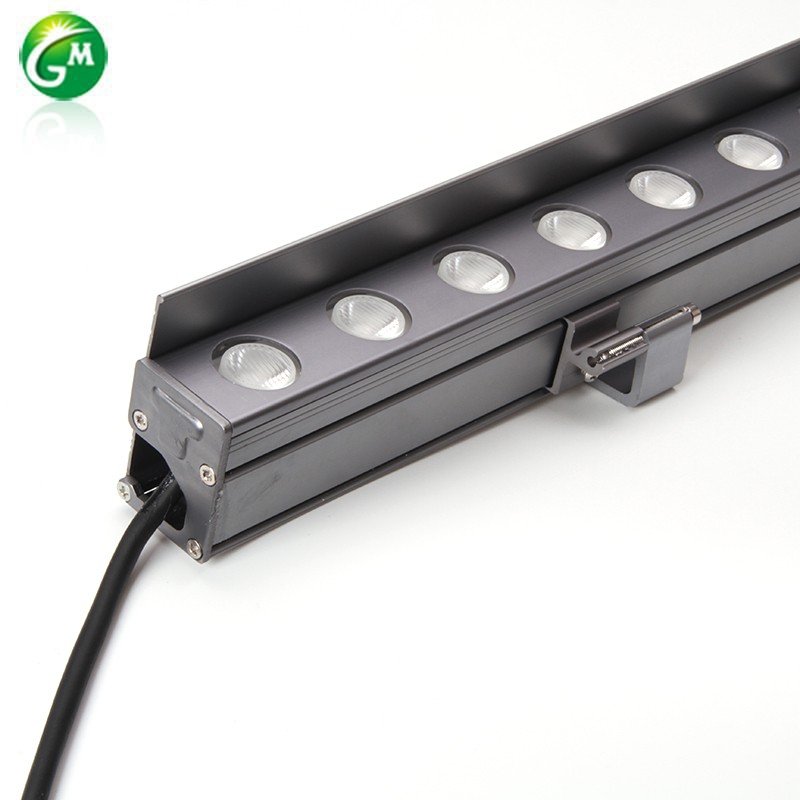

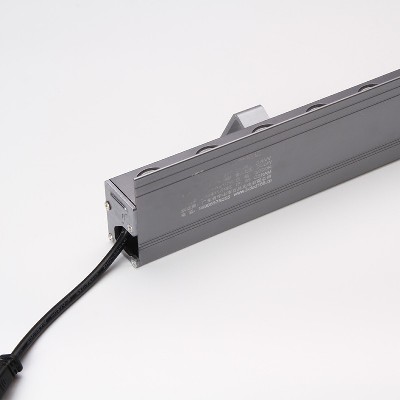

GMTGDD048
2019-11-26 957
| Place of origin | Zhongshan, Guangdong | model | GMTGDD048 | specification | L1000*W34*H45MM |
| Brand | BASUN/Wide Beauty | Input voltage | DC24V | Output current | 600mA ±5% |
| power | 24W | light source | Imitation 24L | colour | RGB、RGBW DMX512 |
Protection level | IP65 | Beam angle | 10*60/10*60°Stripe lens | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD049 | specification | L1000*W34*H65MM |
| Brand | BASUN/Wide Beauty | Input voltage | DC24V | Output current | 1500mA ±5% |
| power | 36W | light source | 3030 36L | colour | R/G/B/W/WW |
Protection level | IP65 | Beam angle | 10*60/7*80°Stripe lens | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018 |
| Place of origin | Zhongshan, Guangdong | model | GMTGDD050 | specification | L1000*W34*H65MM |
| Brand | BASUN/Wide Beauty | Input voltage | DC24V | Output current | 600mA ±5% |
| power | 36W | light source | Imitation 36L | colour | RGB、RGBW DMX512 |
Protection level | IP65 | Beam angle | 10*60/7*80°Stripe lens | Application range | Products used in bridges, hotels, buildings, parks, plazas and lakeside parks, etc. |
Light distribution curve | IES | New time | 2018 |
